          Both mainlines are required to use Flex or sectional Atlas, Peco, or Micro
Engineering track, either (nominal) code 80, 70 or 55 rail, all of which are available
through your local hobby dealer or online retailer. All have been proven to work reliably in
the past. Neither of the two mainlines shall be hand laid track, thus reducing the chance of
variation in the gauge and assuring more reliable operation for everyone in a group
setup.

          If you wish to use code 55 flex track, you will need to use a small stretch of Atlas
sectional track approximately 1" to 2" in length at the ends of each mainline. Don't use a
piece of flex track for this as the rails will be loose. Sectional track will keep the rails held
securely in place and in gauge even if it is only 2" long. This short piece of Atlas track is
needed because code 55 track is thinner overall and won't join properly with the
connector tracks which are Atlas 5" straight sectional track (code 80). The use of this
section will allow the joiner track between modules to mate with track that has the exact
same profile. By using shims (cardboard, styrene, etc) to gradually raise the code 55
track, the rail heads can be made flush with that of the Atlas section at the ends of each
mainline. Also, Micro Engineering and Atlas will not join directly with a rail joiner without a
noticeable mismatch in the elevation of the top of the railhead. This is separate from, but
in addition to, the tie thickness difference. Please refer to the "Tips and Techniques"
page  for joining code 55 to code 80 rails, as well as other helpful information.
Mainline Specifications

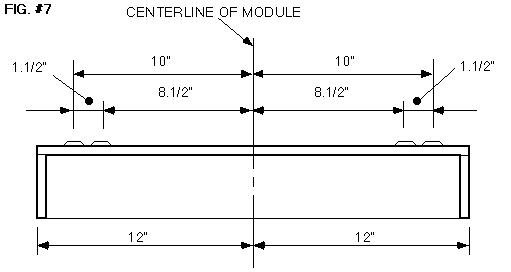

          To ensure easy set-up & trouble free operation,
accurate track placement is crucial. Position of the tracks
is as follows: Mainline #1 is the main farther from the
center of the bench work and Mainline #2 is the main
closer to the center of the bench work. To position the
mains at each end you first find the center of the 2 foot
wide module and measure out both directions 8 1/2" to the
center line of main two and 10" out to the center of main
one. This should leave 2" from the center of main one to
the front edge of the module.
          The 1 1/2" of space between the two mainlines may be widened within the confines of the module to accommodate more track such as a yards, industries or other scenery, but should not go below this minimum in order to insure proper clearance between equipment anywhere on the system.

          If tunnels, bridges or any structures extending over the mainline are to be used, make sure that there is easy access in order to retrieve any derailment which might occur. There should be sufficient clearance for high or wide equipment such as double stack containers, 89' flatcars, 85 foot "hi-cubes" and passenger cars. Please note that double stack container cars are taller than passenger cars, hi-cube box cars and TOFC's (trailer on flat cars), and will need more height clearance than what is normally considered adequate, keep this in mind if you have any members who model the modern era. It's generally considered better to err slightly towards exaggerated clearance, especially if these are to be used in a club, group or train show setting.
Track Code
Mainline Placement
          PLEASE RESIST THE TEMPTATION to measure 2"
and 3 1/2" in from the outside edge of the module to locate
the track centerlines. We have found the chance for error in
alignment of mainlines from one module to another is
GREATLY REDUCED by measuring out from the centerline of the module. This is because the centerline, as a common point to align all mainlines from, prevents slight module width variations from becoming mainline alignment errors. One module's centerline will match another module's centerline even if the width of the two modules varies slightly. If this seems to be making a mountain out of a mole hill, please realize that you can't slide a module sideways to improve track alignment on one side without creating a misalignment on the other side if the mainlines were not located properly to begin with. Just a little care in the track laying stage will prevent any significant shimmy as a train crosses from one module to the next.
Mainline Clearance
Cork Roadbed
          The use of cork roadbed is recommended, starting the roadbed at the end of the module and continuing across to the other end so that the roadbed stretches clear across the entire module. We have found that gluing the cork securely helps to prevent transit damage.
Grades & Inclines
          The double track mainlines shall remain flat and level with no grades. There are no restrictions on any other tracks, so long as their grades or inclines don't interfere with the operation of the mainlines. If other tracks cross the mains, crossings should be level and true to the mainlines.
